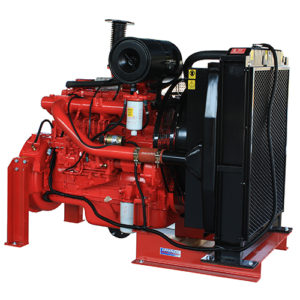

320kW at 2400 RPM Crossley Diesel Fire Engine – Heat Exchanger Cooled

Model No.: 6126Ti-2F-HX-FIRE-13

Crossley diesel heat exchanger cooled diesel engine’s are specially designed in Australia to fully comply with the strict Australian fire engine standards AS 2941-2013. These engines undergo stringent testing to ensure quality performance and reliability. They pair perfectly with our Diesel Fire Pump Controller.

Stock Number: 6126Ti-2F-HX-FIRE-13 Categories: ,

Power Rating: 320 kW
Engine Model: Crossley Diesel Engine
Starter Voltage: 24 V
Cold Crank Amps (CCA): 312
Cylinder No.: 6 Turbocharged & Int
Cubic Capacity: 9.3 L
max. speed: 2400 rpm
Flywheel Housing: 1 SAE
Flywheel: 14 SAE
Combustion Air Flow: 384 L/sec
Heat Rejection to Coolant: 256 kW
Heat Rejection to Atmosphere: 48 kW
Exhaust Gas Flow: 1139 L/sec
Exhaust Gas Temperature: 580 °C
Exhaust Pipe Size: 5″”
Min. Secondary Cooling Water Flow: 4.6 L/sec @ 20°C
Governing: Mechanical
Approx. Fuel Consumption @ Full Load: 78.3 L/hr
Weight: 1250 kg

*Specifications are subject to change without notice
  • Heat exchanger cooling
  • Engine feet
  • Energise to stop solenoid fitted
  • Speed transducer fitted
  • Condensation trap below exhaust manifold
  • Guards fitted to suit 2013 specifications
  • Exhaust flex muffler (supplied loose)
  • Jacket heater with additional dry contact for remote indicator (if applicable)
  • fuel lines to suit 2013 specifications
  • oil pressure sender fitted
  • Engine water temp sender fitted

** This engine fully complies with the Australian Standard AS2941-2013

Firepump Ratings Spreadsheet

Performance Curve

Technical Drawing
