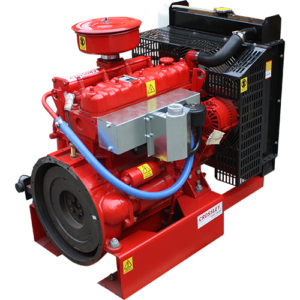

53kW at 2900 RPM Crossley Diesel Fire Engine – Radiator Cooled

Model No.: 4102N-1-RAD-FIRE-13

Crossley diesel air radiator cooled diesel engine’s are specially designed in Australia to fully comply with the strict Australian fire engine standards AS 2941-2013. These engines undergo stringent testing to ensure quality performance and reliability. They pair perfectly with our Diesel Fire Pump Controller.

Stock Number: 4102N-1-RAD-FIRE-13 Categories: ,

Power Rating: 53 kW
Engine Model: Crossley Diesel Engine
Starter Voltage: 24 V
Cylinder No.: 4
Cubic Capacity: 3.6 L
Max. Speed: 2900 rpm
Flywheel Housing: 4 SAE
Flywheel: 10 SAE
Combustion Air Flow: 72 L/sec
Heat Rejection to Coolant: 44 kW
Heat Rejection to Atmosphere: 6 kW
Radiator Fan Air Flow: 180 m3/min
Exhaust Gas Flow: 260 L/sec
Exhaust Gas Temperature: 600 °C
Exhaust Pipe Size: 2″
Governing: Mechanical
Approx. Fuel Consumption @ Full Load: 19 L/hr
Weight: 550 kg

*Specifications are subject to change without notice
  • Air radiator cooling
  • Engine feet
  • Energise to stop solenoid fitted
  • Speed transducer fitted
  • Condensation trap below exhaust manifold
  • Guards fitted to suit 2013 specifications
  • Exhaust flex muffler (supplied loose)
  • Jacket heater with additional dry contact for remote indicator (if applicable)
  • fuel lines to suit 2013 specifications
  • oil pressure sender fitted
  • Engine water temp sender fitted

** This engine fully complies with the Australian Standard AS2941-2013

Fire Pump Ratings spreadsheet

Performance Curve

Technical Drawing
